Multi-Instance

Install Somewear Core as a highly available, multi-host deployment: each host runs the Core service, and all hosts share a single external Postgres (with PostGIS) instance and a single external Redis instance. Run the steps below on every host in the deployment.

What you’ll need

An already-deployed, externally-managed Postgres instance with the PostGIS extension installed, reachable from every host that will run Somewear Core. This install method does not provision Postgres for you — that’s the key difference from Single Instance, which runs Postgres and Redis as containers on the same box.
An already-deployed, externally-managed Redis instance, reachable from every host.
One or more servers running Ubuntu or Debian Linux, each with:
- 2 CPU cores
- 8 GB RAM
- 40 GB disk storage
An API token provided by Somewear Labs.
A load balancer in front of the hosts — see Caddy Load Balancer if you need one.

Each host runs the Somewear Core service and connects out to the same Postgres and Redis instances; the load balancer sits in front of the hosts and distributes traffic across them.

Architecture

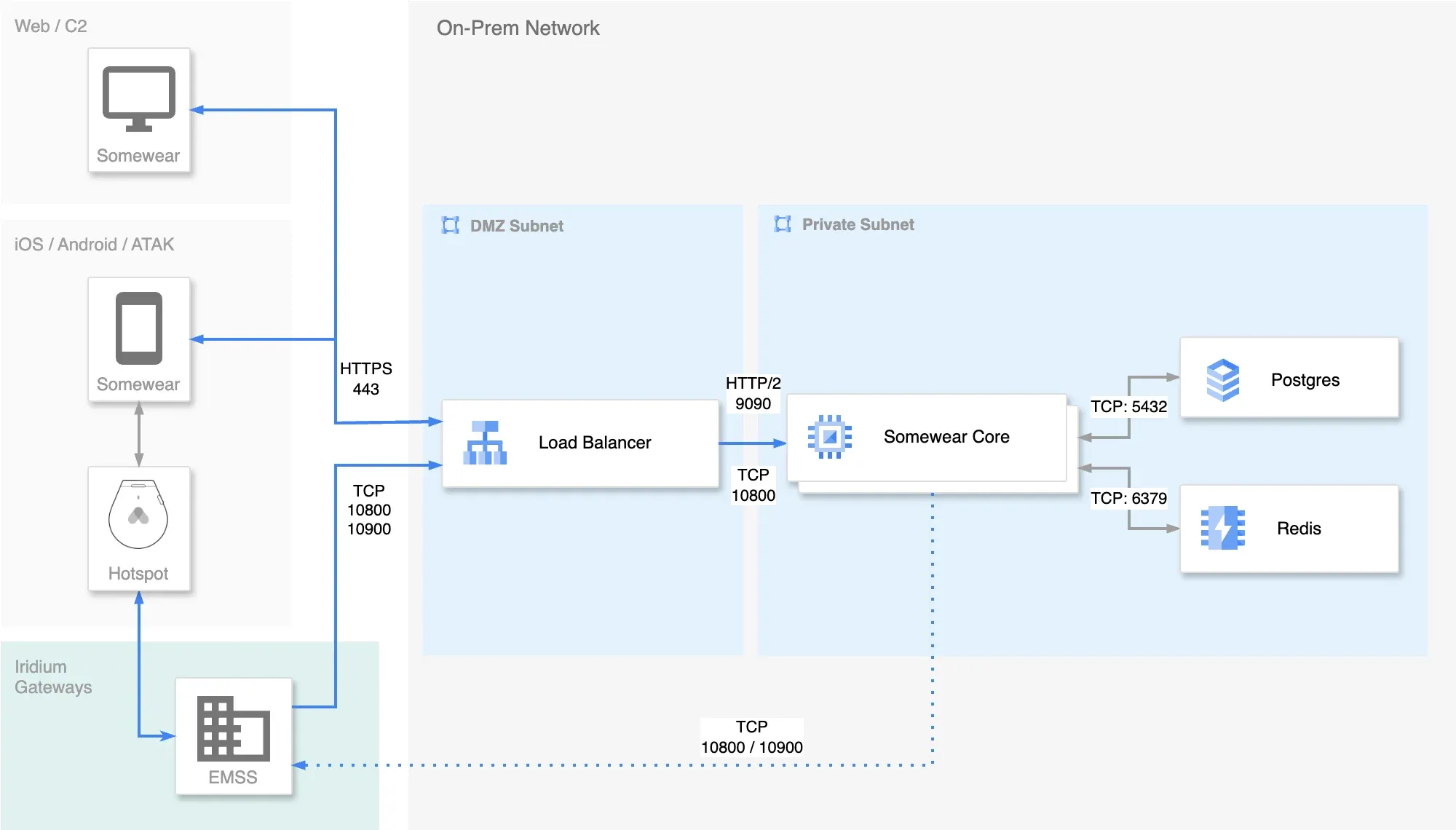

Multiple Linux hosts each running the Somewear Core service, pointed at a shared external Postgres+PostGIS instance and a shared external Redis instance

Install the Pilot CLI and Docker

Run the installation script on the host. It installs Docker, creates the pilot user, sets up the Pilot CLI tool, and initializes the configuration directories.

curl -sSL https://get.somewear.app/core/install.sh | bash

Configure the host against your external datastores

Switch to the pilot user:
```
sudo su - pilot
```
Initialize the configuration with the --external-datastores flag, which prompts for your Postgres and Redis connection settings instead of provisioning local containers:
```
pilot init --external-datastores
```

Answer each prompt. You’ll need the API key Somewear Labs gave you, the DNS address for this installation, credentials for a system admin account, and your Postgres and Redis connection details. Example output:

$ pilot init --external-datastores
Creating new Pilot configuration file at ~/.config/somewear/pilot.properties...
Enter a value for each property
api-key (Pilot API key provided by Somewear Labs): <REDACTED_API_TOKEN>
api-address (Web address for the api server. i.e. api.somewear.co): somewear.example.org

Configuration file created.
Creating new Somewear core configuration file at ~/.somewear/pilot/core/somewear.conf...
Enter a value for each property
WEB_APP_URL (Web address URL for the server. i.e. https://api.somewear.co): https://somewear.example.org
SOMEWEAR_IDENTITIES_TO_CREATE (Somewear system admin account (formatted as username:password)): somewear:P@ssw0rd
POSTGRES_DB_HOST (Formatted as host:port): postgres.company.local:5432
POSTGRES_USER (Postgres username): postgres
POSTGRES_PASSWORD (Password for Postgres user): myS3cr3t
REDIS_HOST (Redis hostname): redis.company.local
REDIS_PORT (Redis port): 6379

Configuration file created.

Start the Somewear Core service

Generate the Docker Compose file for the Somewear Core service:
```
pilot node docker-prepare --external-datastores
```
Start the service:
```
docker compose up -d
```
Optionally, follow the container logs to watch the application come up:
```
docker logs -f somewear-core
```
Repeat every step on this page on each additional host in the deployment. Every host points at the same Postgres and Redis instances.

Verify the install

Each host’s somewear-core container logs should show the service starting cleanly and connecting to your Postgres and Redis instances, with no connection errors. Once every host is up and passing this check, put them behind your load balancer.
