Horizon ships as 1 of 4 SKUs (Iridium or Inmarsat satellite modem × Aircraft or GCS firmware). Each Aircraft Hardware Unit is paired with one of three furnished accessory kits (below), selected based on the flight controller.

Pixhawk / JST-GH Flight Controllers

Use this kit for Pixhawk PX4, Cube, or any flight controller with a JST-GH TELEM1 connector and compatible pinout. The Pixhawk TELEM1 port supplies data only; power must be sourced separately. The SWL-HAR-0005 cable splits the Horizon I/O connector into a JST-GH telemetry leg and an exposed-lead power leg — the integrator is responsible for terminating the power leg with the appropriate connector for the aircraft’s supply.

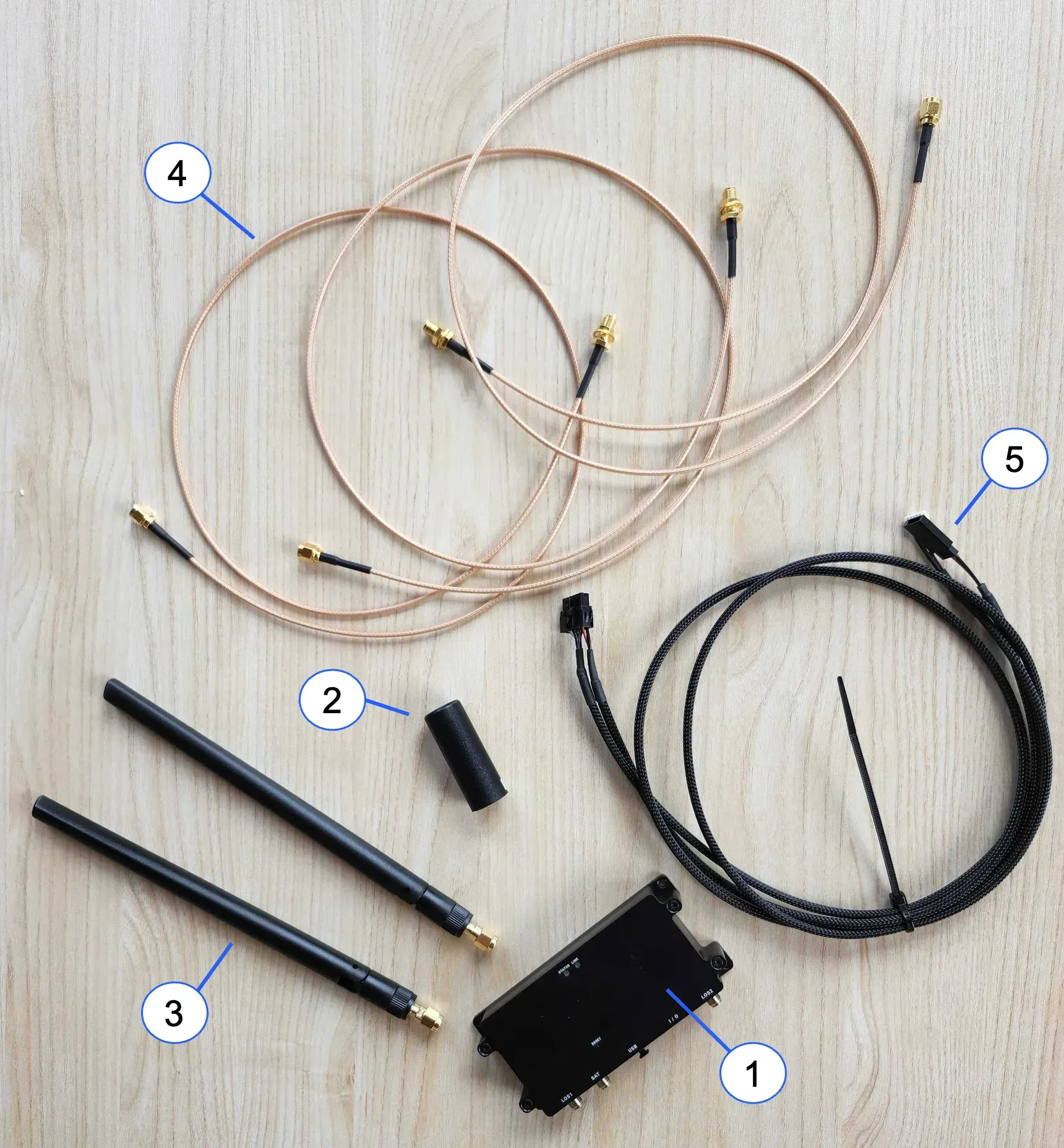

Part	Item	Qty	Description
1	Horizon Aircraft Hardware Unit	1	Iridium or Inmarsat modem; aircraft firmware preloaded
2	BLOS antenna	1	Maxtena M1621HCT-P-SMA
3	LOS antenna, 915 MHz	2	Linx ANT-915-IPW1-RPS (RP-SMA) with SMA adapter pre-attached.
4	Coaxial cable	3	Johnson/Cinch 415-0031-036, 36” — one per antenna (LOS1, LOS2, BLOS)
5	SWL-HAR-0005 — Pixhawk interface cable	1	30”. Molex Nano-Fit 12-pin (F) [105314-1212] on Horizon side; JST-GH 6-pin (M) [GHR-06V-S] on FC TELEM1; exposed leads on power leg.

GCS Hardware Unit Kit

One standard GCS accessory kit ships with every GCS-firmware Horizon unit. The kit supplies all custom and off-the-shelf parts required to connect the unit to a GCS laptop, AC mains, and a Taranis RC controller.

Part	Item	Qty	Description
1	Horizon GCS Hardware Unit	1	Iridium or Inmarsat modem; GCS firmware preloaded
5	SWL-HAR-0002 — Power and data split cable	1	6”. Connectors: Molex Nano-Fit 12-pin (F) [105314-1212] on Horizon side; Molex Nano-Fit 12-pin (M) [105308-1212] cable-to-Horizon; Molex Nano-Fit 2-pin (F) [200277-1102] to RC controller cable; Molex Nano-Fit 2-pin (M) [105307-1202] to AC adapter.
6	SWL-HAR-0004 — RC controller cable	1	8’. Molex Nano-Fit 2-pin (M) [105307-1202] to power/data cable; Molex Nano-Fit 6-pin (M) [105308-1206] to RC backpack.
7	SWL-50019 — RC controller backpack	1	3D-printed clip-on connector cover for the FrSky Taranis or RadioMaster RC TX16S Mark II (replaces stock rear cover; passes the RC controller cable into the controller)
8	Modified AC wall adapter	1	12 V / 2 A AC-DC supply
3	LOS antenna, 915 MHz	2	915 MHz hinged whip antenna with SMA adapter pre-attached
2	BLOS antenna	1	Maxtena M1621HCT-P-SMA
4	Coaxial cable	3	Johnson/Cinch 415-0031-036, 36” — one per antenna (LOS1, LOS2, BLOS)

Note

USB-C cable: A USB-C cable is not included in the GCS kit. Because cable length requirements vary by installation, the operator or installer supplies their own data-capable USB-C cable to connect the GCS Hardware Unit to the GCS computer (see Horizon GCS Setup and Troubleshooting).

Note

SMA Extension Cables: Two long SMA coaxial extension cables are required to run from the GCS Hardware Unit to the deployed LOS antenna mounts. Cable length is deployment-dependent.

Note

Tripods and Mounts: Tripods, masts, and antenna holders are not included in the GCS kit.

Note

SAT port usage: The SAT port on the GCS Hardware Unit is required for Iridium / Inmarsat BLOS control unless the GCS computer has active ISP / internet connectivity, in which case BLOS commands may be routed through the Somewear backend over the GCS internet connection.

Inspection Upon Receipt

Upon receipt of each package, verify the packing list above for your unit type. Inspect all components for shipping damage. If any item is missing or damaged, contact your assigned Somewear field service representative or sales representative before proceeding with installation.
